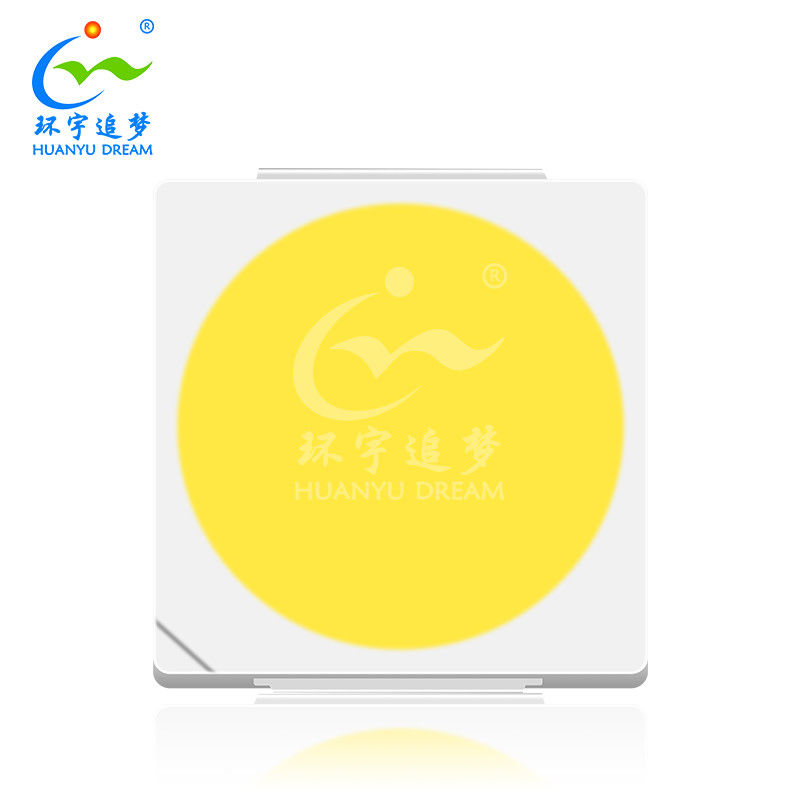

High Lumen High Efficiency 200LM/W 5054 SMD 100mA White 9V LED CHIP

Name: High Lumen High Efficiency 200LM/W 5054 SMD 100mA White 9V LED CHIP
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-5054W60L800-3W
Price: 12.20 USD
Availability: InStock

Detalles del producto

Lugar de origen: Porcelana

Nombre de la marca: HuanYu Dream

Certificación: Rohs

Número de modelo: HY-5054W60L800-3W

Condiciones de pago y envío

Cantidad de orden mínima: Negociable

Precio: Negociable

Detalles de empaquetado: 4000pcs/carrete

Tiempo de entrega: 7-9 días de trabajo

Condiciones de pago: T/T, PayPal, Ali Pay

Capacidad de la fuente: 200kkpcs/mes

Obtenga el mejor precio

Detalles del producto

Descripción del producto

Resaltar:
                                                                                                                                                                                                                                                                                                                5054 SMD high lumen LED chip, 9V white LED chip 200LM/W, high efficiency 5050 LED chip


Modelo:	HY-5054W60L800-3W	Actual (MA):	300mA
Voltaje （V）:	9V	Color:	6000-6500K
CRI (Ra):	80	Eficacia (LM/W):	200LM/W@100mA
sustrato:	EMC	Personalizable:	Apoyo

Modelo:	HY-5054W60L800-3W
Actual (MA):	300mA
Voltaje （V）:	9V
Color:	6000-6500K
CRI (Ra):	80
Eficacia (LM/W):	200LM/W@100mA
sustrato:	EMC
Personalizable:	Apoyo

High Lumen High Efficiency 200LM/W 5054 SMD 100mA White 9V LED CHIP

This high-brightness, high-efficiency SMD LED chip operates at 9V and 100mA, delivering exceptional luminous efficacy of up to 200 lumens per watt with strong white light output. The 5054 package size ensures superior heat dissipation and light emission performance, making it ideal for energy-efficient, high-brightness lighting applications in space-constrained environments.

Technical Specifications--High Lumen High Efficiency SMD LED

Attribute	Value
Model	HY-5054W60L800-9V6S
Current	300mA
Voltage	9V
Color Temperature	6000-6500K
CRI (Ra)	80
Efficiency	200LM/W@100mA
Substrate	EMC
Customizable	Supported

Key Features-SMD 5054 High Efficiency LED CHIP

Ultra-high luminous efficacy of 200 lumens/watt for exceptional energy efficiency and brightness
9V drive voltage facilitates series connection and improves circuit stability
Standard 100mA current operation compatible with common power supplies
5054 package (5.0mm x 5.4mm) provides superior heat dissipation and light output

Detailed Specifications--SMD LED 5054 CHIP

Parameter	Specification
Electronic Power	3W
Color Temperature	6000-6500K
Current (IF)	300mA
Forward Voltage (VF)	9V
Light Efficiency	200lm/w@100mA
CRI	80
Lumen Output	800-850LM
Dimensions	5.0*5.4mm
Chip Manufacturer	Sanan/Epistar
Viewing Angle	120°
Warranty	3 years

Package Size--5054 SMD White LED CHIP

Applications--High Efficiency SMD 5054 LED CHIP

Commercial and Industrial Lighting

Ideal for high-ceiling spaces including supermarkets, factories, warehouses, and stadiums. High luminous efficiency significantly reduces long-term electricity costs.

Outdoor and Road Lighting

Suitable for streetlights, tunnel lights, and high-mast plaza lighting. Meets energy-saving and reliability requirements for public lighting applications.

Specialty and Professional Lighting

Perfect for professional equipment requiring concentrated, high-intensity light such as floodlights, industrial mining lamps, and photographic fill lights.

High-Demand Indoor Lighting

Excellent light source for high-end panel lights, linear lights, and grille lights. Achieves lower energy consumption and heat generation while maintaining high brightness.
